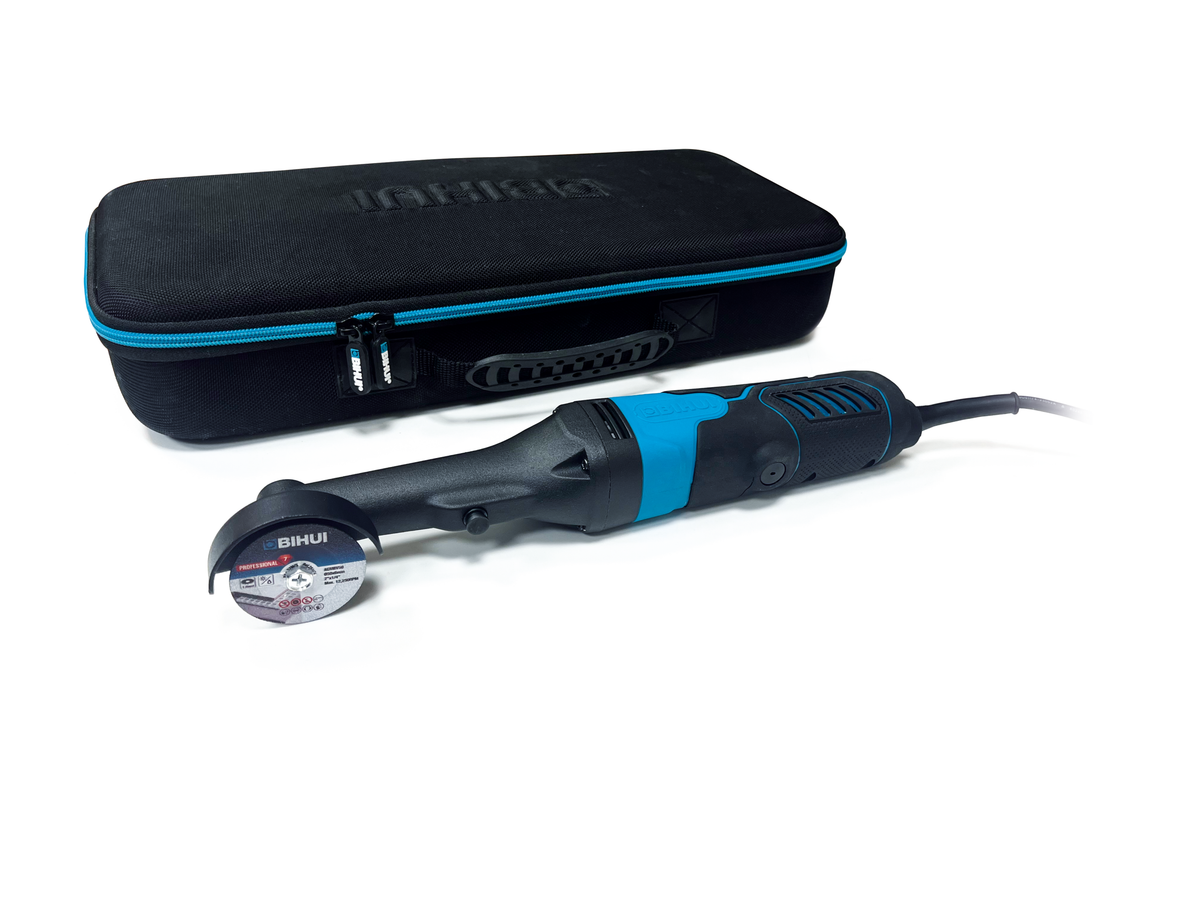

BIHUI AGMN100-plus Mini Long-Neck Angle Grinder with Accessories
The BIHUI AGMN100-plus is a compact long-neck angle grinder for detailed work on tiles and similar workpieces. The small tool mount reaches tight working areas; suitable small cutting discs, polishing accessories and grinding points expand the application options. Six speed settings between 5,000 and 15,000 rpm allow adjustment to the tool being used.
Features for small working areas
- Mains operation with 230 V and 100 W power.
- Six adjustable speed settings.
- For approved discs and pads up to a maximum diameter of 50 mm.
- M5 tool mount with adapter to M6.
- Plus version with cutting, polishing and grinding accessories.
Application and tool selection
The device is suitable for small cuts and targeted detailed work with the appropriate tool. Choose the disc, pad or grinding point according to the material, work step and approved operating mode. The mount, diameter and speed rating must match. The compact tool diameter is designed for fine work; 115 or 125 mm cutting discs do not belong on this machine.
Technical data
| Model | AGMN100-plus |
|---|---|
| Item number | 2390391 |
| Mains connection | 230 V / 50 Hz |
| Power | 100 W |
| Speed | 5,000–15,000 rpm, 6 settings |
| Tool diameter | Maximum 50 mm |
| Mount | M5; M5 to M6 adapter |
Scope of delivery of the Plus version
The described Plus package includes the device, two mounting keys, an M5/M6 adapter, a 3 mm chuck, an M6 mounting screw and an Allen key. It is supplemented by a sintered diamond cutting disc, a vacuum-brazed multi-disc, a polishing adapter, a dry polishing pad as well as a grinding point with a diameter of 1.5 mm. A carrying bag serves for storage.
Frequently asked questions
Is the separately offered accessory starter kit included?
The more extensive starter kit with item number 2390882 is a separate item. It is not supplied additionally to the Plus accessories described here.
Which disc size fits?
Suitable tools are permitted up to a maximum diameter of 50 mm with a matching mount and speed rating.
Is every application with water permitted?
A water supply alone does not grant approval for wet operation. Observe the specifications of the machine, safety device and tool for the specific combination.
