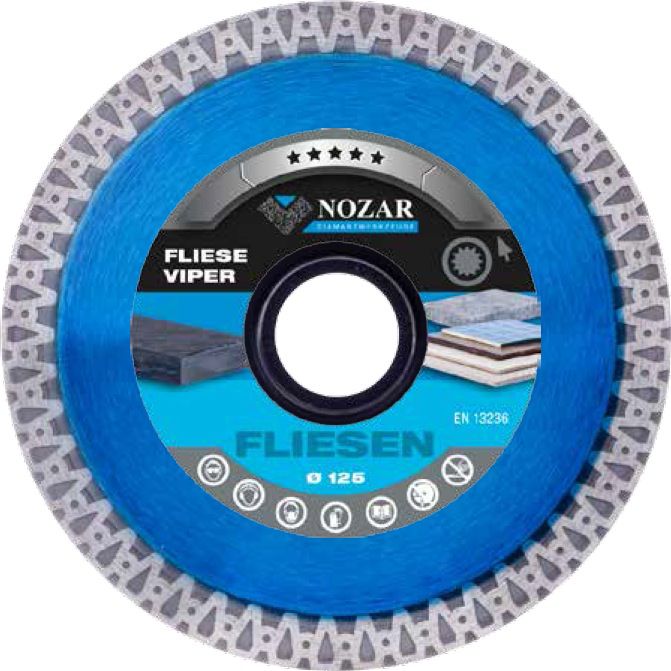

Nozar Fliese Viper Diamond Cutting Disc
The Nozar Fliese Viper is a thin diamond cutting disc from the Premium Line for hard ceramic coverings and natural stone tiles. The narrow 1.2 mm cutting area and the 10 mm high ornamental segment are designed for a fine cut. A reinforced flange stabilizes the tool body. The Viper is ideal for tilers and interior fitters who make visible cuts in sophisticated coverings.
Features and Benefits
- For very hard porcelain stoneware, granite slabs and artificial stone tiles.
- Also suitable for ceramic, terracotta and marble.
- 1.2 mm cutting width for coverings up to 10 mm thick.
- Closed cutting edge with ornamental structure and reinforced flange.
Application
The disc is suitable for cutting and trimming the coverings mentioned above. Clean results also depend on the workpiece support, feed rate and condition of the cutting edge. For glazed or particularly sensitive surfaces, a test cut on a sample piece is recommended. Prepare the workpiece and cutting path before starting so that the disc can be guided straight.
Technical Data
| Manufacturer Part Number | Specifications |
|---|---|
| 6700301 | Diameter (mm): 125; Bore (mm): 22.23; Segment width (mm): 1.2; Segment height (mm): 10.0 |
Selection and Processing
This version measures 125 mm in diameter and has a 22.23 mm bore. It is intended for use as a cutting tool; surface grinding requires a tool designed for that purpose. Before mounting, compare the dimensions and maximum speed with the machine and guard. The product description does not replace the machine manual.
Frequently Asked Questions
Is the Viper suitable for hard porcelain stoneware?
Yes. Hard porcelain stoneware and hard ceramic are among the main applications of the series.
How wide is the cutting area?
According to the manufacturer's data, the 125 mm version has a segment width of 1.2 mm.
Can I grind with the side surface?
The product is described as a cutting disc. For side grinding, a grinding tool approved for that purpose should be selected.
Order Quantity and Scope of Delivery
Select the desired version and then the quantity of 1, 3 or 6 pieces. One order unit corresponds to the selected quantity. The displayed price is the total price for this quantity.
