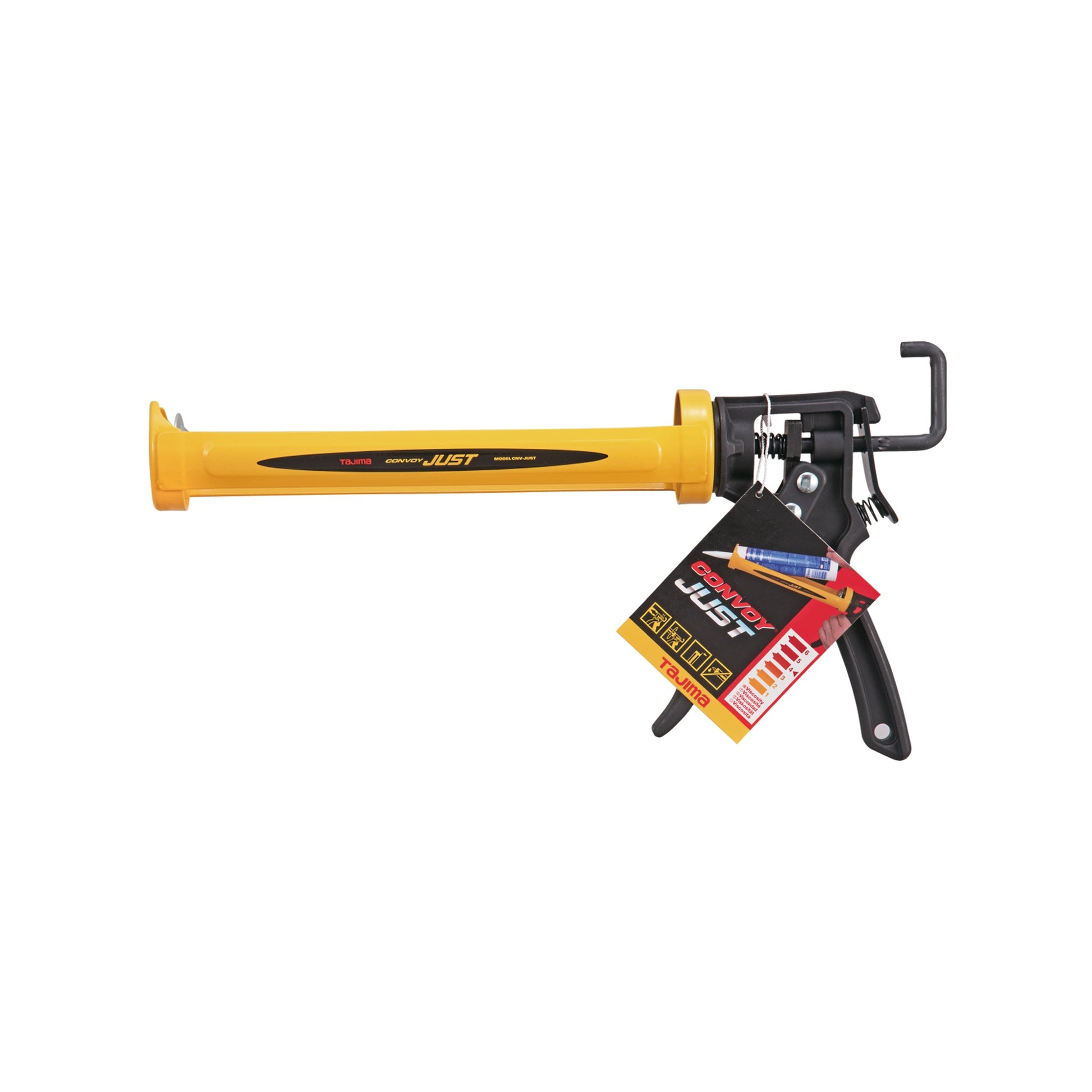

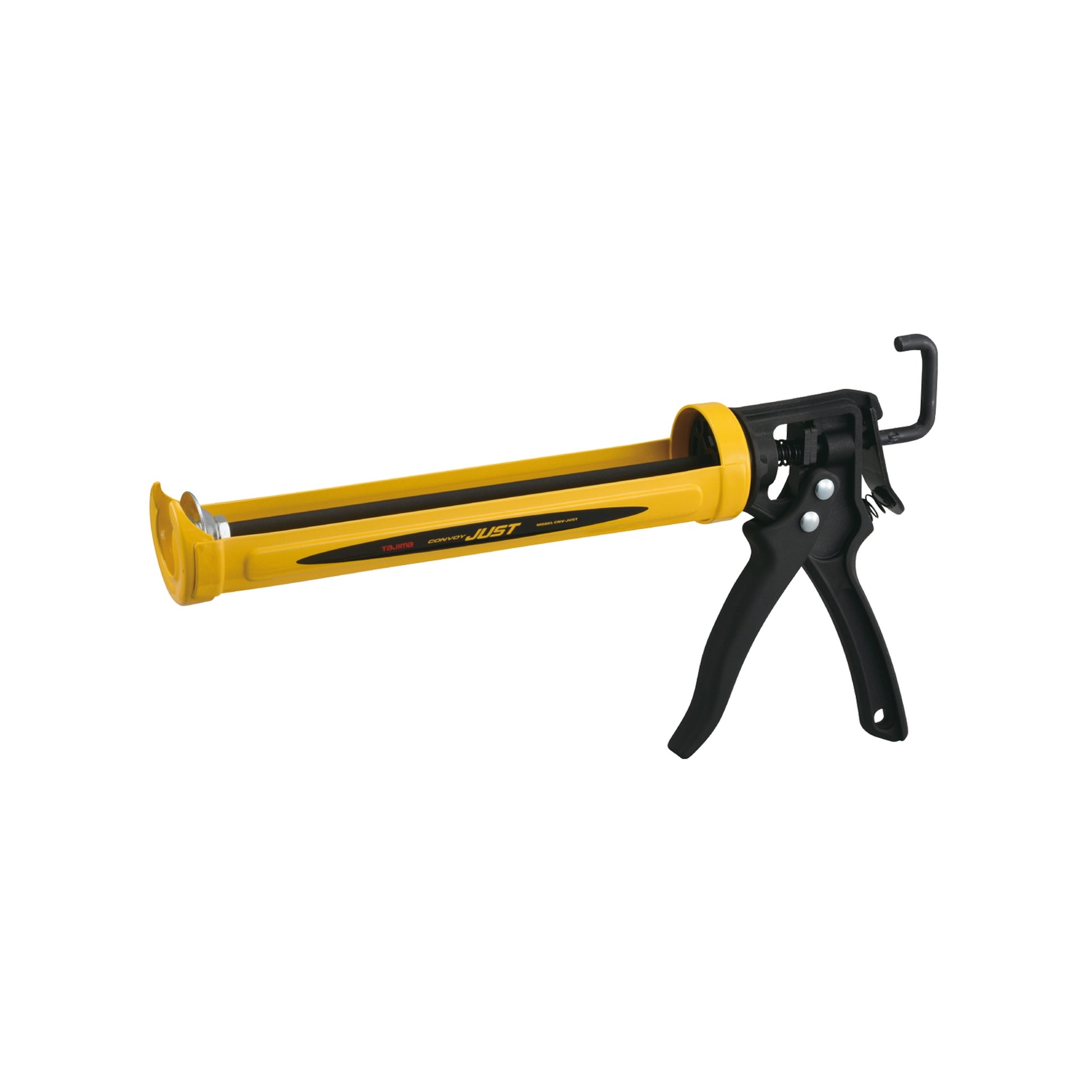

Tajima Convoy Just Caulking Gun

TAJIMA Convoy Just CNV-JUST – Professional cartridge gun for 310 ml cartridges

The TAJIMA Convoy Just CNV-JUST is a robust and smooth-running cartridge gun for the controlled processing of sealants and adhesives from standard 300 and 310 ml cartridges.

With its balanced 7:1 gear ratio, the cartridge gun is particularly suitable for low to medium-viscosity materials such as silicone, acrylic, sealants and numerous assembly adhesives. The Twin-Thrust system, the automatic material flow stop, and the 360° rotatable cartridge holder support clean and controlled work.

Your advantages at a glance

• Professional cartridge gun from TAJIMA
• For standard cartridges up to 310 ml
• Gear ratio of 7:1
• Suitable for low to medium-viscosity materials
• Powerful Twin-Thrust feed system
• Even and controlled material output
• Automatic material flow stop to prevent unnecessary afterflow
• 360° rotatable cartridge holder
• Smooth plunger rod for precise feed
• Robust, open metal construction
• Corrosion-protected feed and pressure components
• For construction sites, assembly, finishing, workshops, and renovation

7:1 gear ratio for controlled work

The mechanical 7:1 gear ratio offers a balanced combination of dispensing force and good dosing capability. This allows the material to be dispensed from the cartridge evenly and in a controlled manner.

The TAJIMA Convoy Just is particularly suitable for materials that can be easily processed with a normal hand cartridge gun. For very high-viscosity or particularly difficult-to-extrude products, a cartridge gun with a higher gear ratio may be more suitable.

Twin-Thrust system for even feed

The Twin-Thrust system supports an efficient transfer of hand force to the plunger rod. The feed mechanism engages reliably and ensures an even material flow.

The smooth plunger rod allows for precise dosing and can be quickly retracted after unlocking to insert or change the cartridge.

Automatic material flow stop

When the trigger is released, the pressure on the cartridge piston is automatically reduced. This limits the unwanted afterflow of sealant or adhesive from the cartridge nozzle.

The so-called Auto Flow Stop facilitates clean working, reduces material waste, and helps to start and end joints and adhesive beads in a controlled manner.

360° rotatable cartridge holder

The open cartridge holder can be rotated completely by 360°. The cartridge nozzle can thus be aligned to match the respective working direction.

This facilitates processing in corners, at wall and floor connections, overhead, and in areas where the entire cartridge gun can only be moved to a limited extent.

Suitable materials

Depending on product approval and consistency, the TAJIMA Convoy Just can be used for the following materials, among others:

• Silicone sealants
• Acrylic sealants
• Sanitary silicone
• Painter's acrylic
• Low to medium-viscosity assembly adhesives
• MS polymer and hybrid sealants
• Joint sealants
• Other materials in rigid 300 or 310 ml cartridges

Note: The required dispensing force depends on the viscosity, processing temperature, age of the material, and the size of the nozzle opening. Always observe the processing instructions of the respective sealant or adhesive manufacturer.

Typical areas of application

• Sanitary and tiling work
• Window and door installation
• Drywall and interior finishing
• Painting and renovation work
• Sealing of connection and expansion joints
• Application of assembly adhesives
• Workshop and repair work
• General assembly work on construction sites

Technical data

Variants and scope of delivery

Depending on the selected variant, you will receive:

• 1 piece: 1 × TAJIMA Convoy Just Cartridge Gun CNV-JUST
• 6 pieces = 1 VE: 6 × TAJIMA Convoy Just Cartridge Gun CNV-JUST in a complete manufacturer sub-packaging

Cartridges, sealants, and adhesives are not included in the scope of delivery.

FAQ – Frequently asked questions about the TAJIMA Convoy Just

What cartridge size is the Convoy Just suitable for?

The cartridge gun is designed for standard rigid cartridges with a content of approximately 300 or 310 ml.

What does a 7:1 gear ratio mean?

The gear ratio describes the mechanical force amplification of the cartridge gun. With a ratio of 7:1, the force applied to the handle is amplified and transferred to the cartridge piston.

What materials is the cartridge gun suitable for?

The Convoy Just is primarily suitable for low to medium-viscosity materials such as silicone, acrylic, joint sealants, and numerous assembly adhesives in suitable cartridges.

Can the gun be used for silicone?

Yes. Standard silicone sealants in 300 or 310 ml cartridges can be processed with the TAJIMA Convoy Just.

Is the Convoy Just suitable for assembly adhesive?

Yes, provided the assembly adhesive has a low to medium-viscosity consistency. For particularly tough adhesives, a cartridge gun with a higher gear ratio may be more suitable.

What is the Twin-Thrust system?

The Twin-Thrust system is the feed mechanism of the cartridge gun. It supports an even transfer of hand force to the plunger rod and thus a controlled material flow.

Does the cartridge gun have a drip stop?

Yes. When the trigger is released, the pressure on the cartridge is automatically reduced. This limits the afterflow of material from the nozzle.

Is the cartridge holder rotatable?

Yes. The cartridge holder can be rotated by 360°. This allows the cartridge nozzle to be aligned to match the respective working direction.

Is the Convoy Just suitable for foil bags?

No. The CNV-JUST is designed for rigid cartridges. For foil bags, a specially designed foil bag gun is required.

What is the difference to the TAJIMA Super 12?

The Convoy Just operates with a 7:1 gear ratio, while the TAJIMA Super 12 has a higher gear ratio of 12:1. The Convoy Just is particularly suitable for easily extrudable standard materials, while the Super 12 provides more force for tougher products.

What is the difference to the TAJIMA Convoy Super 26?

The Convoy Super 26 has a significantly higher gear ratio of 26:1 and is intended for particularly high-viscosity and difficult-to-extrude materials. The Convoy Just allows for well-controlled dosing with lighter materials.

What does "6 pieces = 1 VE" mean?

The bundle variant includes six complete TAJIMA Convoy Just cartridge guns. Six pieces correspond to a sealed manufacturer sub-packaging for this model.

Is a cartridge included in the scope of delivery?

No. Only the selected number of TAJIMA cartridge guns will be delivered. Sealants, adhesives, and cartridges must be ordered separately.

Application notes

1. Unlock the plunger rod and pull it back completely.
2. Insert a suitable 300 or 310 ml cartridge into the holder.
3. Cut the cartridge tip according to the desired joint width.
4. Completely open the inner cartridge seal.
5. Screw on the cartridge nozzle and cut to size.
6. Rotate the cartridge holder to the desired working direction.
7. Operate the trigger evenly and dispense the material in a controlled manner.
8. After use, release the plunger rod and remove material residues.

Safety and care instructions

• Observe the safety and processing instructions for the material used.
• Wear suitable protective gloves and safety glasses depending on the product.
• Do not use damaged, leaky, or deformed cartridges.
• Do not apply excessive force if the nozzle or cartridge is blocked.
• Remove fresh material residues from the gun as soon as possible.
• Regularly check the plunger rod and feed mechanism for contamination.
• Store the cartridge gun dry and clean.
• Keep out of reach of children.
